C-Arm compatible Electric OT Table
Features
- Eccentric Pillars
- Stainless Fitting
- Detachable Head, Leg and Pelvic Section
- Additional Column Remote
- Five Sectional Radio – Translucent Top
- In Built kidney bridge
- Base & Cover made of attractive, easy to clean Stainless Steel
- Sophisticated mechanics provide smooth, step less articulation of the tableTop for precise patient positioning
- Standby Battery Backup with recharging circuit

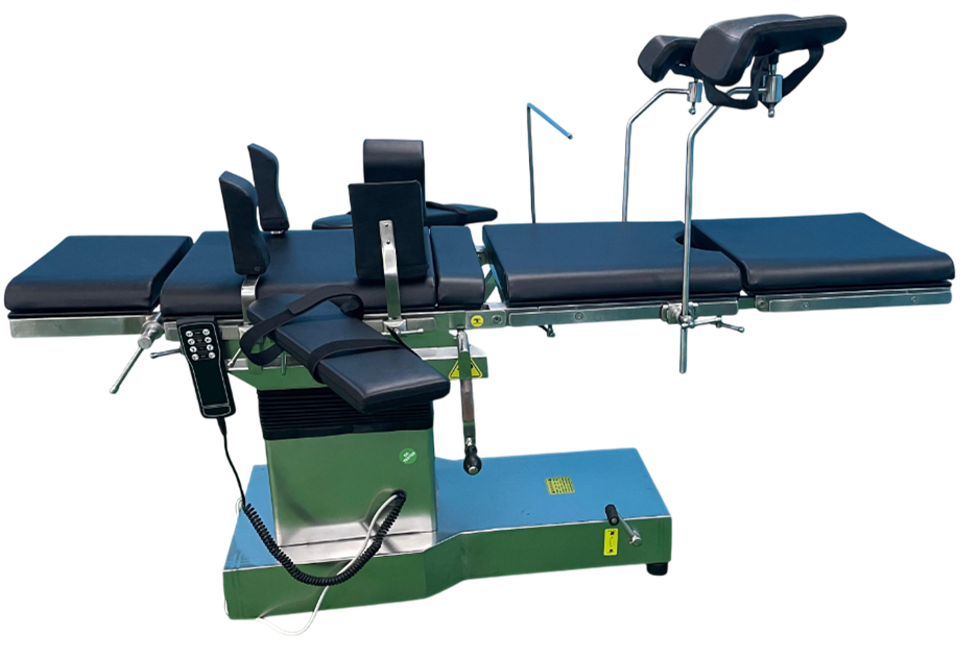

UH-04
Technical Data
| Length of Table Top | 1950mm |
|---|---|
| Width of Table Top | 530mm |
| Minimum Height | 700mm |
| Maximum Height | 1000mm |
| Trendelenburg | 25° Both Sides |
| Lateral Tilt | 20° Both Side |
| Back Section | 75°/30° |
| Head section | ±90° |
| Leg section | 0-90° |
| Floor locking | Manual |
Automatic functions
- Height Up/Down
- Trendelenburg/ Reverse
- Lateral Tilt
- Back Up/Down
Manual Functions
- Head Adjustment
- Leg Adjustment
- Floor Locking
Accessories
- Shoulder Support
- Side support
- Arm rest
- Anesthetic Screen
- Lithotomy support
Ways To Operate
- Hand Remote
C-Arm compatible Electric OT Table
Features
- Eccentric Pillars
- Stainless Fitting
- Detachable Head, Leg and Pelvic Section
- Additional Column Remote
- Additional manual override panel
- Five Sectional Radio – Translucent Top
- In Built kidney bridge
- Base & Cover made of attractive, easy to clean Stainless Steel
- Sophisticated mechanics provide smooth, step less articulation of the tableTop for precise patient positioning
- Standby Battery Backup with recharging circuit
UH-04 ADVANCE
Technical Data
| Length of Table Top | 1950mm |
|---|---|
| Width of Table Top | 530mm |
| Minimum Height | 700mm |
| Maximum Height | 1000mm |
| Trendelenburg | 25° Both Sides |
| Lateral Tilt | 20° Both Side |
| Back Section | 75°/30° |
| Head section | ±90° |
| Leg section | 0-90° |
| Floor locking | Manual |
Automatic functions
- Height Up/Down
- Trendelenburg/ Reverse
- Lateral Tilt
- Back Up/Down
Manual Functions
- Head Adjustment
- Leg Adjustment
- Floor Locking
Accessories
- Shoulder Support
- Side support
- Arm rest
- Anesthetic Screen
- Lithotomy support
Ways To Operate
- Hand Remote
- Column Remote
C-Arm compatible Electric OT Table
Features
- Eccentric Pillars
- Stainless Fitting
- Detachable Head, Leg and Pelvic Section
- Additional Column Remote
- Additional manual override panel
- Five Sectional Radio – Translucent Top
- In Built kidney bridge
- Base & Cover made of attractive, easy to clean Stainless Steel
- Sophisticated mechanics provide smooth, step less articulation of the tableTop for precise patient positioning
- Standby Battery Backup with recharging circuit
UH-04 ADVANCE +
Technical Data
| Length of Table Top | 1950mm |
|---|---|
| Width of Table Top | 530mm |
| Minimum Height | 700mm |
| Maximum Height | 1000mm |
| Trendelenburg | 25° Both Sides |
| Lateral Tilt | 20° Both Side |
| Back Section | 75°/30° |
| Head section | ±90° |
| Leg section | 0-90° |
| Floor locking | Manual |
Automatic functions
- Height Up/Down
- Trendelenburg/ Reverse
- Lateral Tilt
- Back Up/Down
Manual Functions
- Head Adjustment
- Leg Adjustment
- Floor Locking
Accessories
- Shoulder Support
- Side support
- Arm rest
- Anesthetic Screen
- Lithotomy support
Ways To Operate
- Hand Remote
- Column Remote
- Manual override
C-Arm compatible Top Sliding Electric OT Table
Features
- Eccentric Pillars
- Stainless Fitting
- Detachable Head, Leg and Pelvic Section
- Five Sectional Radio – Translucent Top
- In Built kidney bridge
- Base & Cover made of attractive, easy to clean Stainless Steel
- Sophisticated mechanics provide smooth, step less articulation of the tableTop for precise patient positioning
- Standby Battery Backup with recharging circuit
UH-05
Technical Data
| Length of Table Top | 1950mm |
|---|---|
| Width of Table Top | 530mm |
| Minimum Height | 700mm |
| Maximum Height | 1000mm |
| Trendelenburg | 25° Both Sides |
| Lateral Tilt | 20° Both Side |
| Back Section | 75°/30° |
| Top sliding | 250mm |
| Head section | ±90° |
| Leg section | 0-90° |
| Floor locking | Manual |
Automatic functions
- Height Up/Down
- Trendelenburg/ Reverse
- Lateral Tilt
- Back Up/Down
- Top sliding
Manual Functions
- Head Adjustment
- Leg Adjustment
- Floor Locking
Accessories
- Shoulder Support
- Side support
- Arm rest
- Anesthetic Screen
- Lithotomy support
Ways To Operate
- Hand Remote
C-Arm compatible Top Sliding Electric OT Table
Features
- Eccentric Pillars
- Stainless Fitting
- Detachable Head, Leg and Pelvic Section
- Additional Column Remote
- Five Sectional Radio – Translucent Top
- In Built kidney bridge
- Base & Cover made of attractive, easy to clean Stainless Steel
- Sophisticated mechanics provide smooth, step less articulation of the tableTop for precise patient positioning
- Standby Battery Backup with recharging circuit

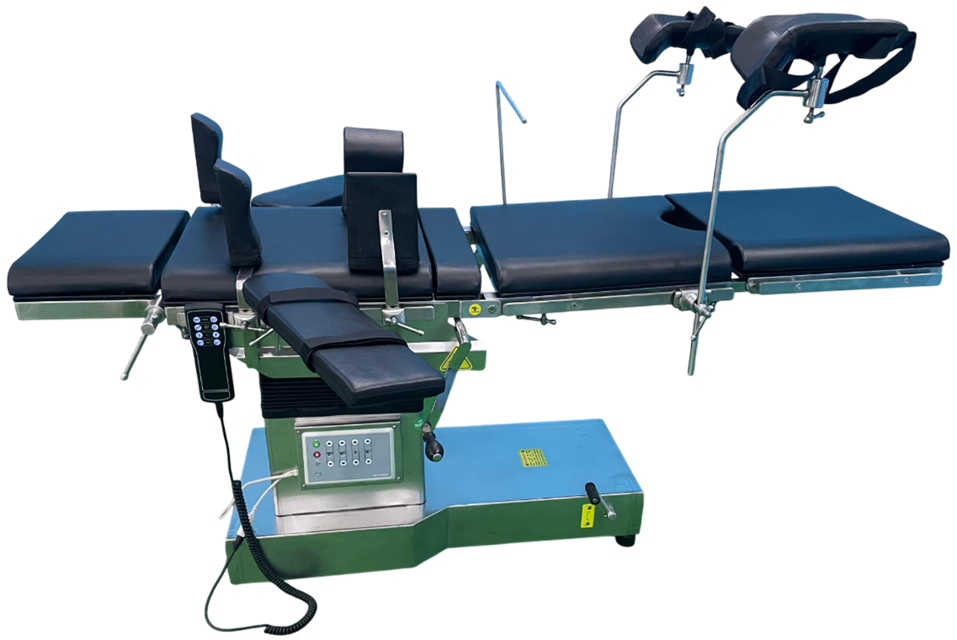

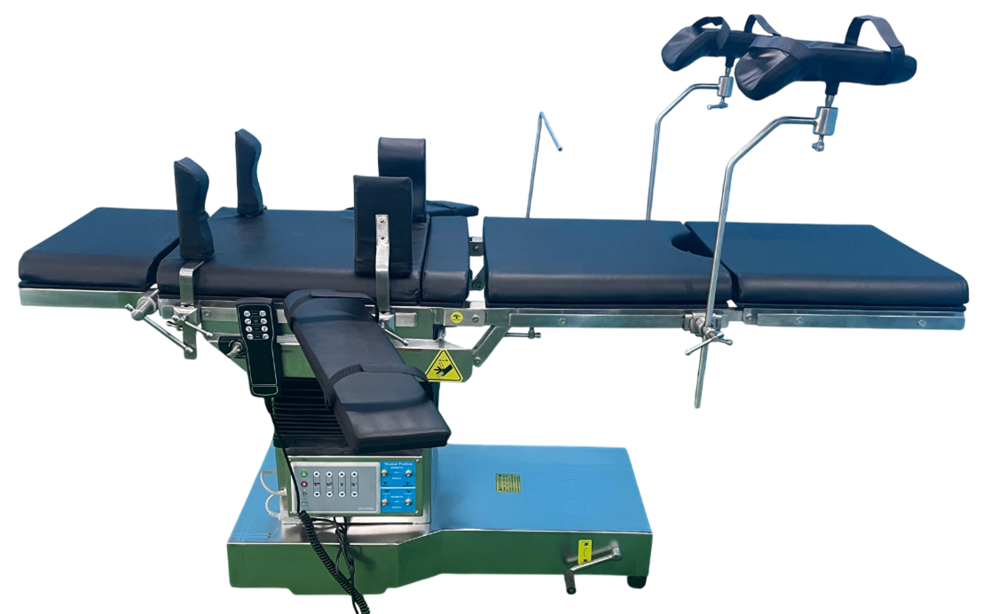

UH-05 ADVANCE
Technical Data
| Length of Table Top | 1950mm |
|---|---|
| Width of Table Top | 530mm |
| Minimum Height | 700mm |
| Maximum Height | 1000mm |
| Trendelenburg | 25° Both Sides |
| Lateral Tilt | 20° Both Side |
| Back Section | 75°/30° |
| Top sliding | 250mm |
| Head section | ±90° |
| Leg section | 0-90° |
| Floor locking | Manual |
Automatic functions
- Height Up/Down
- Trendelenburg/ Reverse
- Lateral Tilt
- Back Up/Down
- Top sliding
Manual Functions
- Head Adjustment
- Leg Adjustment
- Floor Locking
Accessories
- Shoulder Support
- Side support
- Arm rest
- Anesthetic Screen
- Lithotomy support
Ways To Operate
- Hand Remote
- Column Remote
C-Arm compatible Top Sliding Electric OT Table
Features
- Eccentric Pillars
- Stainless Fitting
- Detachable Head, Leg and Pelvic Section
- Additional Column Remote
- Additional manual override panel
- Five Sectional Radio – Translucent Top
- In Built kidney bridge
- Base & Cover made of attractive, easy to clean Stainless Steel
- Sophisticated mechanics provide smooth, step less articulation of the tableTop for precise patient positioning
- Standby Battery Backup with recharging circuit
UH-05 ADVANCE +
Technical Data
| Length of Table Top | 1950mm |
|---|---|
| Width of Table Top | 530mm |
| Minimum Height | 700mm |
| Maximum Height | 1000mm |
| Trendelenburg | 25° Both Sides |
| Lateral Tilt | 20° Both Side |
| Back Section | 75°/30° |
| Top sliding | 250mm |
| Head section | ±90° |
| Leg section | 0-90° |
| Floor locking | Manual |
Automatic functions
- Height Up/Down
- Trendelenburg/ Reverse
- Lateral Tilt
- Back Up/Down
- Top sliding
Manual Functions
- Head Adjustment
- Leg Adjustment
- Floor Locking
Accessories
- Shoulder Support
- Side support
- Arm rest
- Anesthetic Screen
- Lithotomy support
Ways To Operate
- Hand Remote
- Column Remote
- Manual override
C-Arm compatible Electric OT Table
Features
- 4 castors 100mm diameter with center Locking
- Eccentric Pillars
- Stainless Fitting
- Detachable Head & Leg Section
- Additional Column Remote
- Additional manual override panel
- Six Sectional Radio – Translucent Top
- In Built Kidney bridge
- Split Leg Section
- Base & Cover made of attractive, easy to clean Stainless Steel
- Sophisticated mechanics provide smooth, step less articulation of the tableTop for precise patient positioning
- Standby Battery Backup with recharging circuit

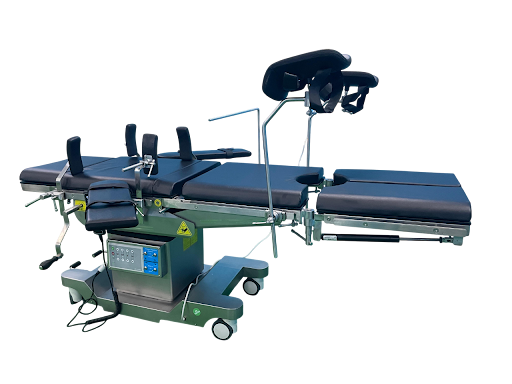

UH-Z ADVANCE
Technical Data
| Length of Table Top | 1950mm |
|---|---|
| Width of Table Top | 530mm |
| Minimum Height | 700mm |
| Maximum Height | 1000mm |
| Trendelenburg | 25° Both Sides |
| Lateral Tilt | 20° Both Side |
| Back Section | 75°/30° |
| Top sliding | 250mm |
| Head section | ±90° |
| Leg section | 0-90° |
| Floor locking | Manual |
Automatic functions
- Height Up/Down
- Trendelenburg/ Reverse
- Lateral Tilt
- Back Up/Down
- Top sliding
Manual Functions
- Head Adjustment
- Leg Adjustment
- Floor Locking
Accessories
- Shoulder Support
- Side support
- Arm rest
- Anesthetic Screen
- Lithotomy support
Ways To Operate
- Hand Remote
- Column Remote
- Manual override
General Surgery Electric OT Table
UH-T ADVANCE
Technical Data
| Length of Table Top | 2200mm |
|---|---|
| Width of Table Top | 520mm |
| Minimum Height | 750mm |
| Maximum Height | 1050mm |
| Trendelenburg | 25° Both Sides |
| Lateral Tilt | 25° Both Side |
| Back Section | ±60° |
| Head section | ±60° |
| Leg section | 0-90° |
| Floor locking | Manual |
Automatic Features
- Height Adjustment
- Trendelenburg/ Reverse
- Lateral Tilt
- Back Up/Down
- Top sliding ( optional )
Optional Features
- Battery Backup
- Split Leg Section
- Longitudinal Top Sliding
- Low Height
- Manual Override
Manual Features
- Head Adjustment
- Leg adjustment
- Kidney Bridge
- Floor Locking
3 ways to Operate
- Hand Remote
- Column Remote
- Manual Override
